Wave Washer (Bearing Use) |
|
|

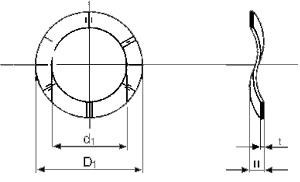

Dimensions of Wave Washer
| Size No. |
d1 |
DI |
THK |
H |
| 6201 / 6301 |
26.5 |
31.7 |
0.3 |
3.0 |
| 6202 |
28.0 |
34.0 |
0.3 |
3.2 |
| 6203 / 6302 |
33.0 |
39.1 |
0.4 |
3.5 |
| 6204 / 6303 |
35.0 |
41.0 |
0.4 |
3.5 |
| 6205 / 6304 |
42.0 |
51.0 |
0.4 |
4.0 |
| 6206 / 6305 |
50.5 |
61.0 |
0.5 |
4.0 |
| 6207 / 6306 |
61.0 |
71.0 |
0.5 |
4.5 |
| 34.0 |
0.3 |
3.2 |
| 6203 / 6302 |
33.0 |
39.1 |
0.4 |
3.5 |
| 6204 / 6303 |
35.0 |
41.0 |
0.4 |
3.5 |
| 6205 / 6304 |
42.0 |
51.0 |
0.4 |
4.0 |
| 6206 / 6305 |
50.5 |
61.0 |
0.5 |
4.0 |
| 6207 / 6306 |
61.0 |
71.0 |
0.5 |
4.5 |
| 6208 / 6307 |
71.0 |
79.0 |
0.6 |
4.5 |
| 6209 / 6308 |
79.0 |
89.0 |
0.6 |
5.0 |
| 6210 / 6309 |
89.0 |
99.0 |
0.7 |
5.0 |
| 6310 |
99.0 |
109.0 |
0.8 |
6.0 |
|
|
